Specifications

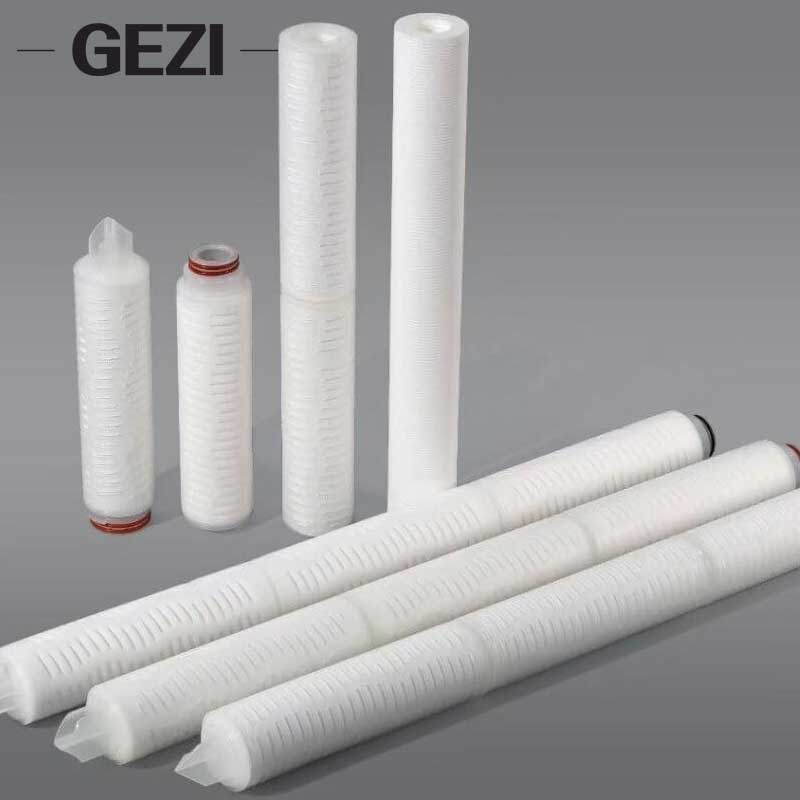

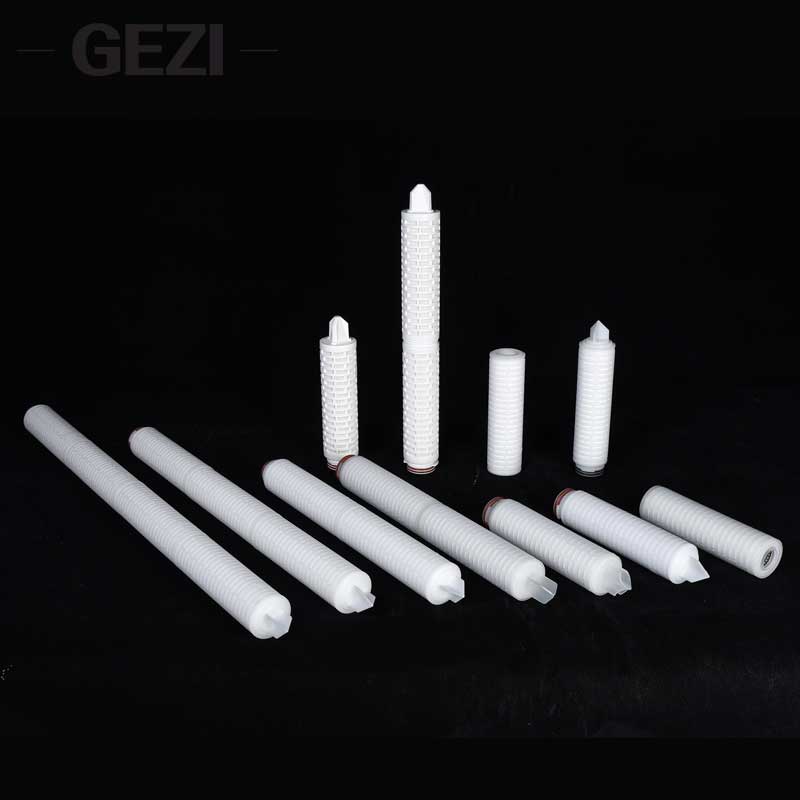

Filter element length: 2.5″, 5″, 10″, 20″, 30″, 40″ (10″≈254mm).
Outer diameter: Common 69mm (2.75″), and 83mm and 131mm large diameter.
Filtration accuracy: 0.04μm (PES bacteria grade), 0.1, 0.22, 0.45, 1, 3, 5, 10, 20, 30, 50, 75, 100μm.
Filtration area: 10″Normal about 0.65m², a certain model, such as 131mm×40″, can reach 9m².
Maximum working pressure difference (forward): can reach 0.3–0.42MPa (≈3–4.2bar) at room temperature, and can be as high as 1.6MPa for strict application.Maximum reverse pressure difference: Common 0.2–0.28MPa (≈2–2.8bar).
Working temperature: PP/PES ≤80–85°C, PTFE can reach above 90°C, PFA type can even reach 170°C.
Steam sterilization temperature: PES/PTFE/PFA type can withstand 121°C steam disinfection ≥30 minutes, PTFE can withstand 100 sterilizations.
Advantages and Features
High filtration area & large flux: The folding structure has a high surface area and low pressure difference, suitable for high flow filtration
Deep gradient structure: decrease from the outside to the inside pore diameter, achieving high dust load capacity and interception efficiency
Hot press welding without adhesive: no chemical residue, no secondary pollution, suitable for food/medical
Strong chemical and biological compatibility: a variety of membrane materials are suitable for acids, alkalis, and organic solvents
High integrity index: The bubble point of the microporous membrane is ≥0.24–0.38MPa, ensuring reliable bacterial interception function
Select suggestions
Select accuracy according to particle interception requirements: for example, select 0.1–0.22µm for sterilization filtration, and select 0.45–10µm for conventional pre-filtration
Consider medium and temperature: PES or PTFE for medical liquid/biological applications; PFA/PTFE for thermal/corrosive media
Dimensions match housing: Confirm the filter length, end cap and O-ring type supported by the filter housing used
Pressure requirements: When the positive and reverse pressure is large, the maximum working pressure difference ≥ the required model should be selected.
Sterilization characteristics: If you need to disinfect frequently, PES/PTFE can withstand 121°C steam and have a longer life
