Loader electronic scale WTC9000CP
operational principle ： The loader electronic scale WTC9000CP is equipped with two pressure sensors installed on the loader. By automatically detecting lifting pressure, it converts pressure signals into electrical signals through A/D conversion, transforming analog signals into digital signals. The microprocessor processes the data and displays weight values. Each time the bucket rises or descends, the microprocessor stores a weight value, accumulating until reaching a preset threshold, triggering audio-visual alarms and recording it in the total accumulation. Widely used in ports, railways, and mining fields, this system enables scheduled loading/unloading during cargo transportation, saving time and effort while preventing overloading and excessive movement. It reduces equipment wear, lowers transportation costs, and improves work efficiency. Accuracy: ±0.5-1%, meeting the Y(b) accuracy class of the International Organization of Metrology (OIML). Display scales: 10 kg, 20kg, 50kg, 100kg; Operating voltage: 12±20% VDC; Operating current: 100mA~500mA; Operating temperature: -20℃~70℃; Minimum load capacity: 200kg; Electronic display: LCD screen (240×128mm)
Product features: Microprocessor control, high degree of intelligence, small size and beautiful appearance. The weighing data can be output through serial port, USB interface or wireless transmission via GPRS (optional). Chinese keyboard, can input Chinese characters, with automatic sound and light reminder, simple and clear operation. Dynamic sampling and fuzzy algorithm are used to realize dynamic calibration and dynamic weighing. Dual oil circuit multi-mode detection, accurate data, high weighing accuracy. No need to stop the fight, automatic weighing in the lifting process, does not affect the loading efficiency, can prevent overloading and underloading. Can print loading time, unit name, cargo name, weight, car number and other data. Large screen display of 240×128mm, which can display weighing results, cumulative weight results and system information. The display and keyboard are backlit for easy operation at night. Automatic audio overload alarm, timely reminder, simple and direct. Memory function, when the electronic scale is turned off, the stored weighing data can be retained. Weighing system installation parts Strong anti-interference ability, suitable for a variety of working environment. Hydraulic sensor · Temperature sensor · Position sensor · Connection parts · Weighing instrument The loader electronic scale is divided into hydraulic loader scale and axle type loader scale. The main feature is the hydraulic loader scale.
Main configuration: 1 position sensor, 2 pressure sensors, 1 display instrument, 1 pair of three-way conversion block, 1 set of modules. Operating Principle: The forklift electronic scale utilizes two pressure sensors installed in the vehicle-mounted mast cylinder's inlet and return oil circuits. These sensors monitor hydraulic pressure fluctuations during mast lifting operations, which are then processed by the central processor in the onboard instrument panel. This integrated system automatically calculates weight data and displays the results on the instrument screen. Suitable customers: widely used in ports, railways, mines, industrial and mining enterprises and other occasions where there are a large number of bulk materials to be loaded and transported by loaders and load limiting and measurement is required. Technical parameters: Accuracy 0.5% ——1%. Maximum weighing: 10 tons. Minimum weighing: 200kg.
Loader electronic scale WTC9000CP
operational principle ： The loader electronic scale WTC9000CP is equipped with two pressure sensors installed on the loader. By automatically detecting lifting pressure, it converts pressure signals into electrical signals through A/D conversion, transforming analog signals into digital signals. The microprocessor processes the data and displays weight values. Each time the bucket rises or descends, the microprocessor stores a weight value, accumulating until reaching a preset threshold, triggering audio-visual alarms and recording it in the total accumulation. Widely used in ports, railways, and mining fields, this system enables scheduled loading/unloading during cargo transportation, saving time and effort while preventing overloading and excessive movement. It reduces equipment wear, lowers transportation costs, and improves work efficiency. Accuracy: ±0.5-1%, meeting the Y(b) accuracy class of the International Organization of Metrology (OIML). Display scales: 10 kg, 20kg, 50kg, 100kg; Operating voltage: 12±20% VDC; Operating current: 100mA~500mA; Operating temperature: -20℃~70℃; Minimum load capacity: 200kg; Electronic display: LCD screen (240×128mm)
Product features: Microprocessor control, high degree of intelligence, small size and beautiful appearance. The weighing data can be output through serial port, USB interface or wireless transmission via GPRS (optional). Chinese keyboard, can input Chinese characters, with automatic sound and light reminder, simple and clear operation. Dynamic sampling and fuzzy algorithm are used to realize dynamic calibration and dynamic weighing. Dual oil circuit multi-mode detection, accurate data, high weighing accuracy. No need to stop the fight, automatic weighing in the lifting process, does not affect the loading efficiency, can prevent overloading and underloading. Can print loading time, unit name, cargo name, weight, car number and other data. Large screen display of 240×128mm, which can display weighing results, cumulative weight results and system information. The display and keyboard are backlit for easy operation at night. Automatic audio overload alarm, timely reminder, simple and direct. Memory function, when the electronic scale is turned off, the stored weighing data can be retained. Weighing system installation parts Strong anti-interference ability, suitable for a variety of working environment. Hydraulic sensor · Temperature sensor · Position sensor · Connection parts · Weighing instrument The loader electronic scale is divided into hydraulic loader scale and axle type loader scale. The main feature is the hydraulic loader scale.

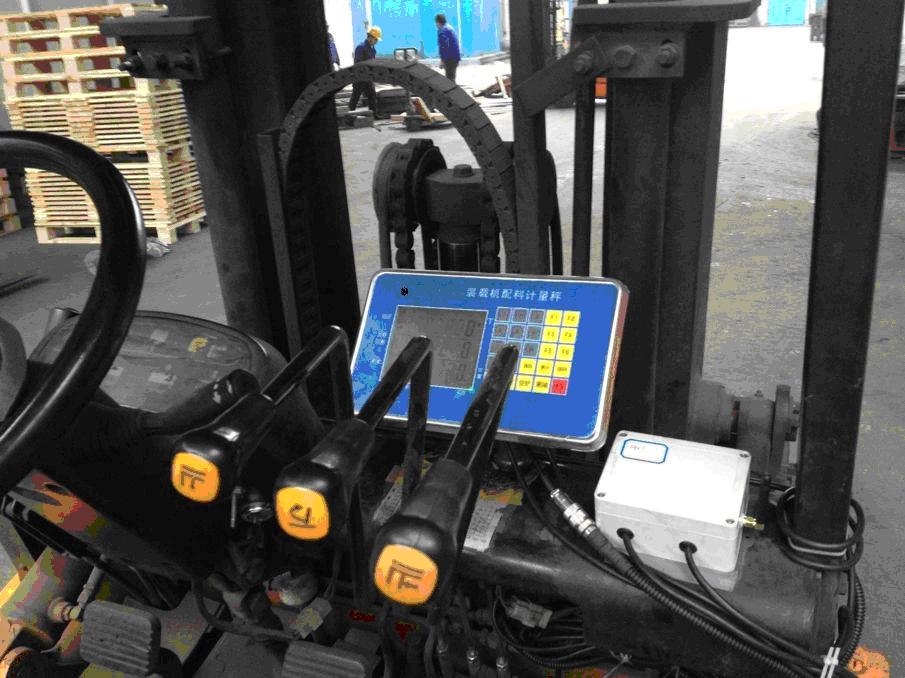

Main configuration: 1 position sensor, 2 pressure sensors, 1 display instrument, 1 pair of three-way conversion block, 1 set of modules. Operating Principle: The forklift electronic scale utilizes two pressure sensors installed in the vehicle-mounted mast cylinder's inlet and return oil circuits. These sensors monitor hydraulic pressure fluctuations during mast lifting operations, which are then processed by the central processor in the onboard instrument panel. This integrated system automatically calculates weight data and displays the results on the instrument screen. Suitable customers: widely used in ports, railways, mines, industrial and mining enterprises and other occasions where there are a large number of bulk materials to be loaded and transported by loaders and load limiting and measurement is required. Technical parameters: Accuracy 0.5% ——1%. Maximum weighing: 10 tons. Minimum weighing: 200kg.
